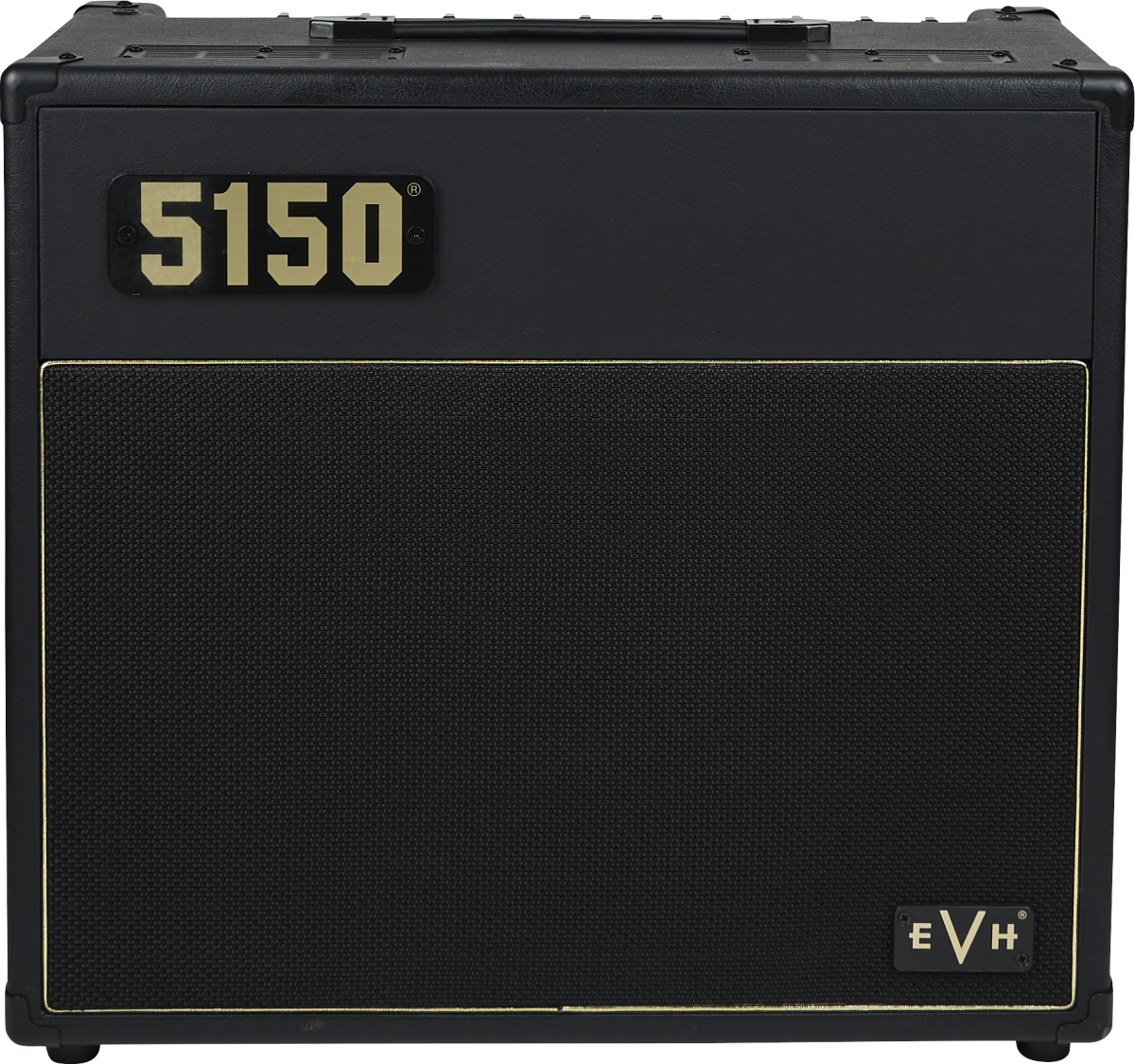

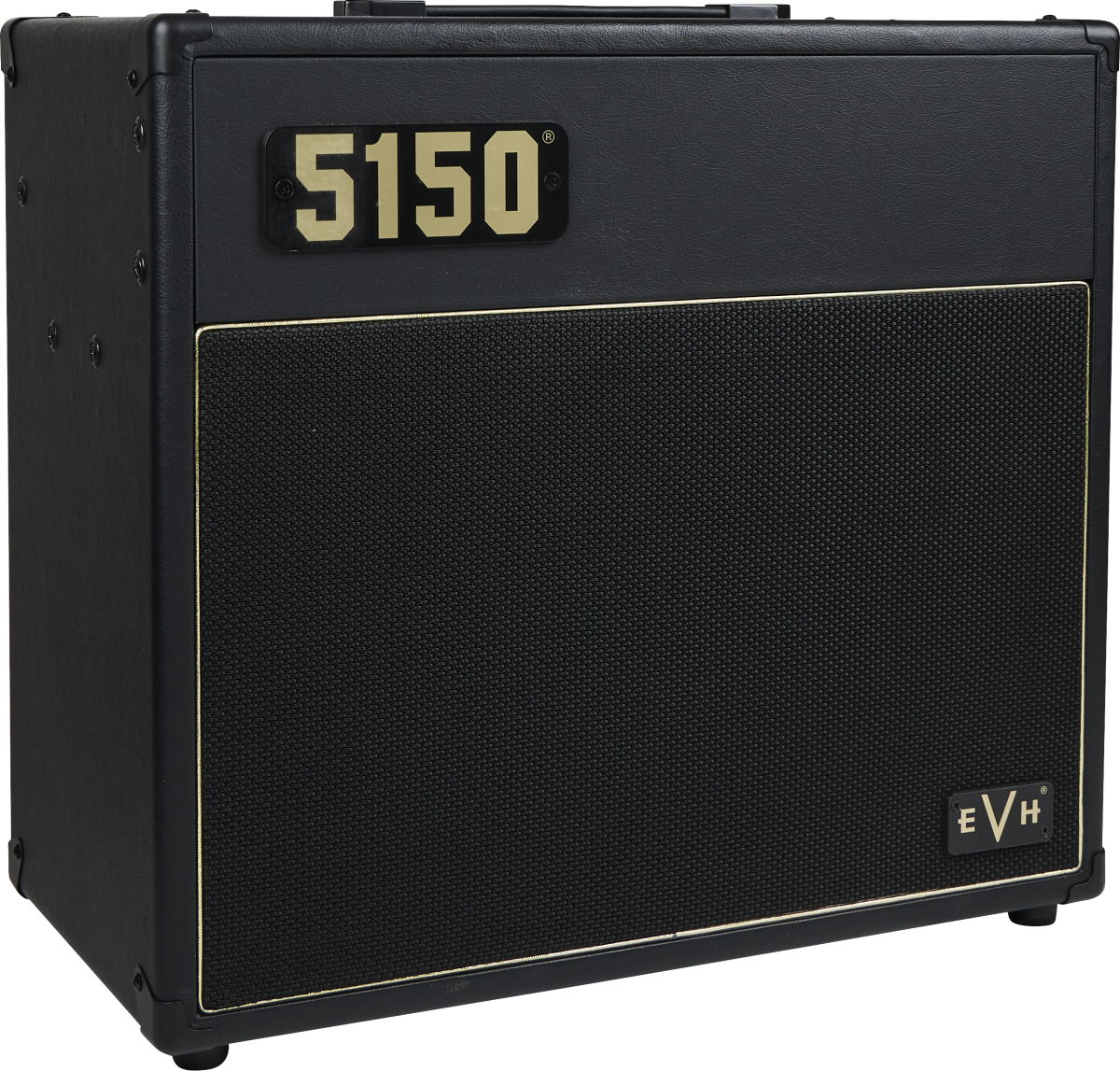

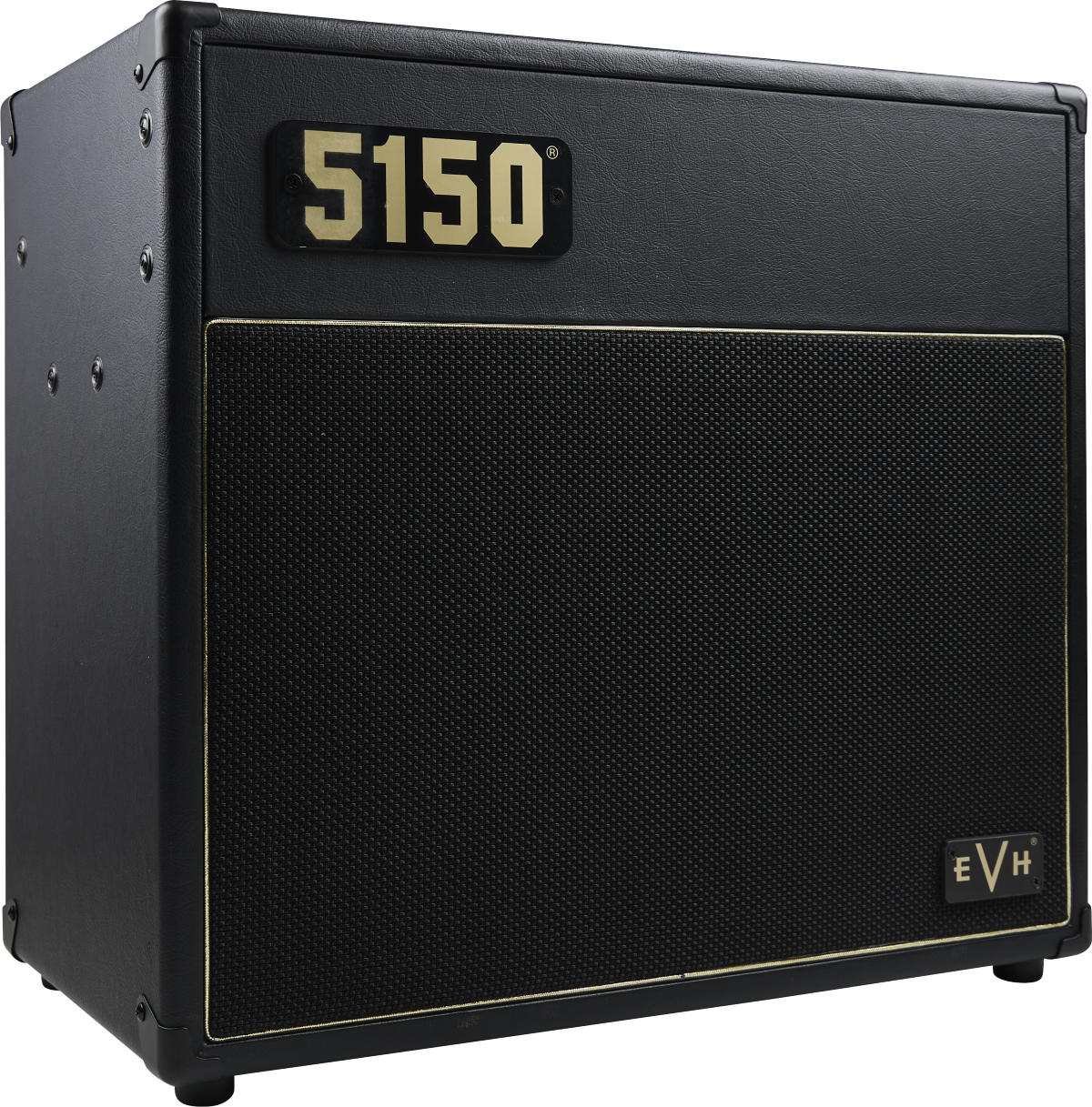

The EVH 5150 Iconic Series 15W EL34 Combo Amp brings authentic Eddie Van Halen tone within reach of working musicians. Engineered by James Brown, this compact powerhouse combines a single EL34 power tube with a dual ECC83 hybrid preamp for commanding presence and articulate clarity. The custom-voiced 10" Celestion speaker and reinforced MDF cabinet deliver tight bass response across both clean and high-gain channels. Dual-channel architecture with independent gain and volume controls, plus dedicated overdrive and burn buttons, provides extensive tonal flexibility. Comprehensive controls include three-band EQ, resonance, presence, and reverb, while practical features such as ¼ power attenuation, effects loop, and speaker-emulated DI output accommodate both stage and studio applications. Finished in textured black vinyl with gold hardware and vintage-style controls, this all-tube combo performs well beyond its modest wattage.
|
Category |
Specification |
|
General |
|
|
Amp Type |
Tube |
|
Wattage |
15W |
|
Voltage |
230V UK |
|
Total Impedance |
4, 8, or 16 Ohms |
|
Speakers |
|
|
No. Of Speakers |
One |
|
Speaker Size |
10” |
|
Speaker Type |
EVH® Celestion® Custom |
|
Electronics |
|
|
Controls |

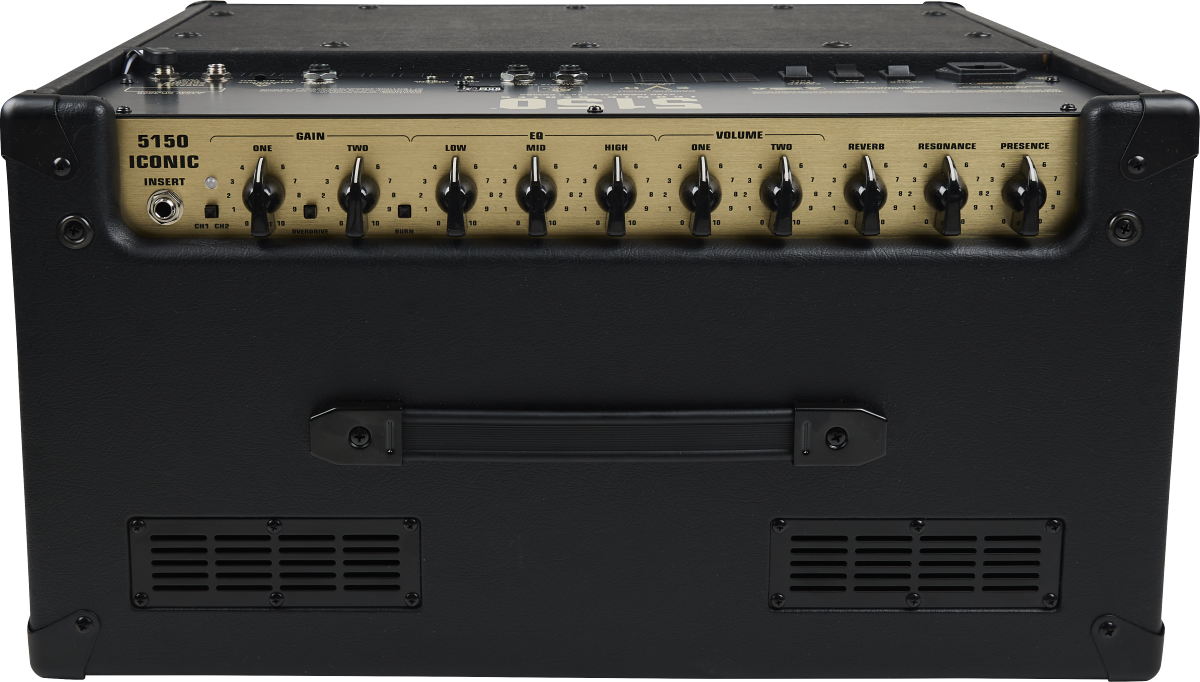

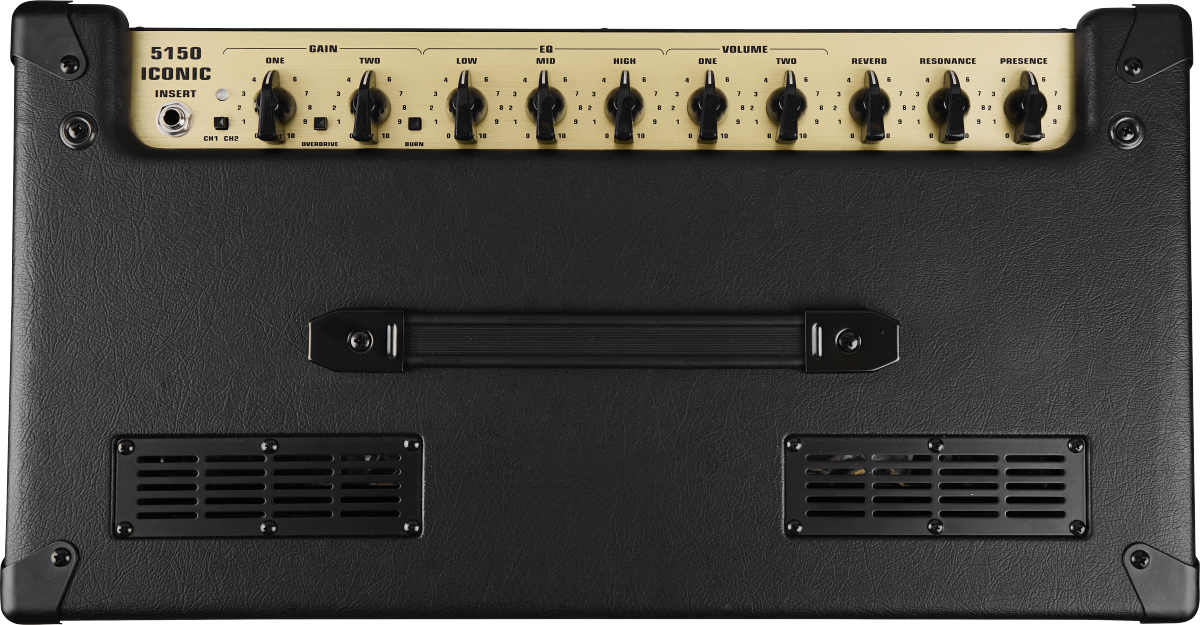

Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Global Reverb, Resonance and Presence |
|
No. Of Channels |
Two |
|
Channels |
Clean/Overdrive and Lead/Burn |
|
Inputs |
One - 1/4” (6.3 mm) Jack |
|
Auxiliary Input |
One - 1/8” (3.5 mm) Jack
|
|
Headphone Jack |
One - 1/8” (3.5 mm) Jack |
|
Effects |
Reverb |
|
Effects Loop |
1/4” (6.3 mm) Send / Return |
|
Tubes |
|
|
Power Tubes |
1 x EL34 |
|
Preamp Tubes |
2 x ECC83S |
|
Accessories |
|
|
Accessories Included |
One-Button Footswitch |
