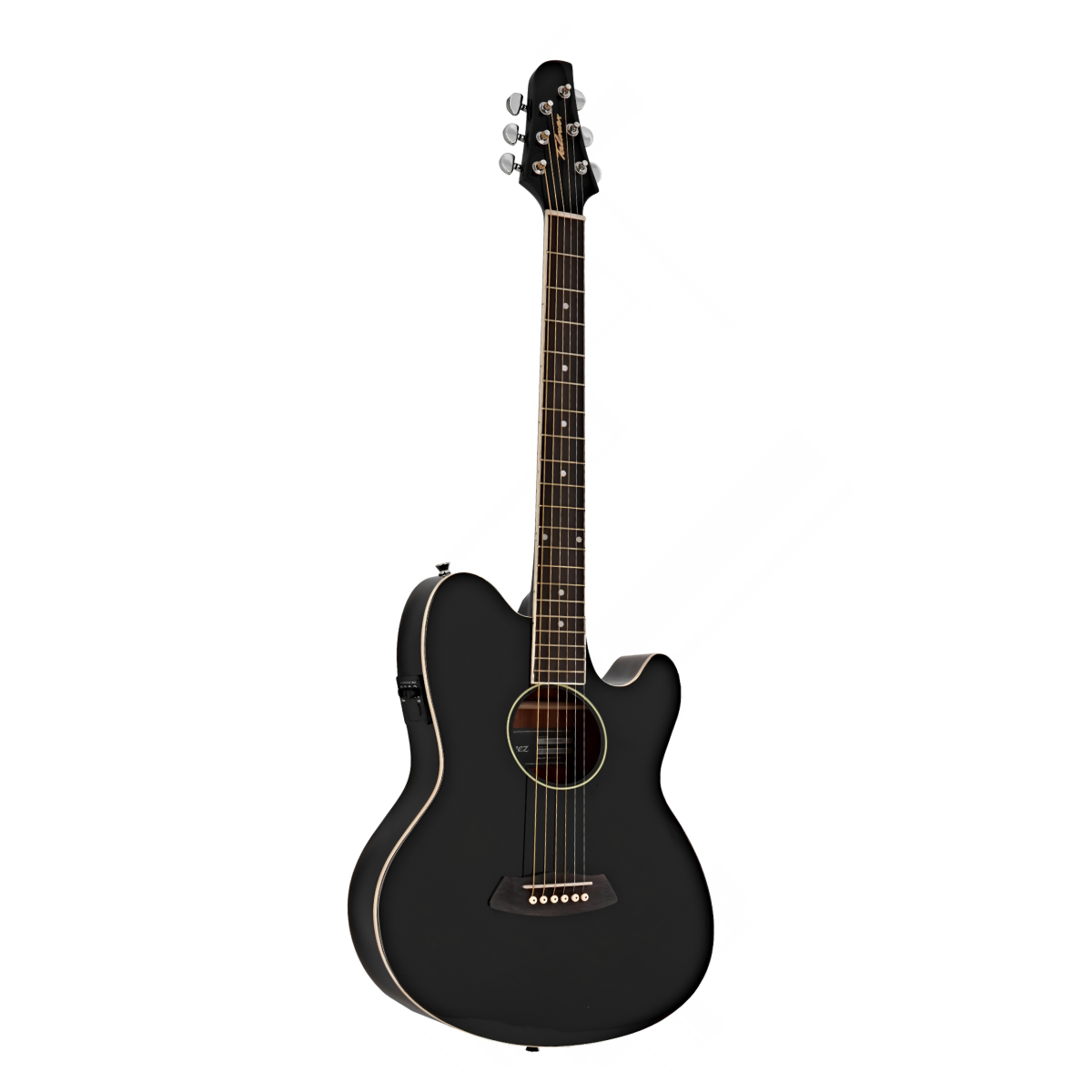

Ibanez TCY10E-BK
SPECS
- Body Shape: Talman Double Cutaway body
- Top: Spruce top
- Back & Sides: Sapele back & Sapele sides
- Neck: TCYOkoume neck
- Fretboard: Purpleheart fretboard
- Bridge: Purpleheart bridge
- Inlay: White dot inlay
- Soundhole Rosette: Black & White multi
- Tuning Machine: Chrome Die-cast tuners
- Number of Frets: 20
- Bridge Pins: Ibanez Advantage™
- String Gauge: .012/.016/.024/.032/.042/.053
- String Space: 11mm
- factory tuning: 1E,2B,3G,4D,5A,6E
- pickup: Ibanez Undersaddle
- preamp: Ibanez AEQ-2T preamp w/Onboard tuner
- output jack: 1/4" output
NECK DIMENSIONS
-
Scale : 650mm/25.6"
- a : Width
- 42mm at NUT
- b : Width
- 54mm at 14F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 23.5mm at 7F
- Radius : 250mmR
BODY DIMENSIONS
- a : Length
- 18 1/8"
- b : Width
- 14 3/8"
- c : Max Depth
- 3 5/8"
