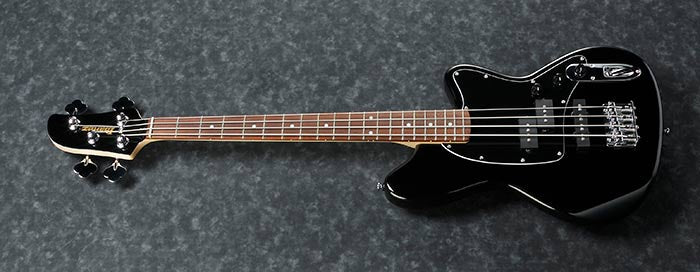

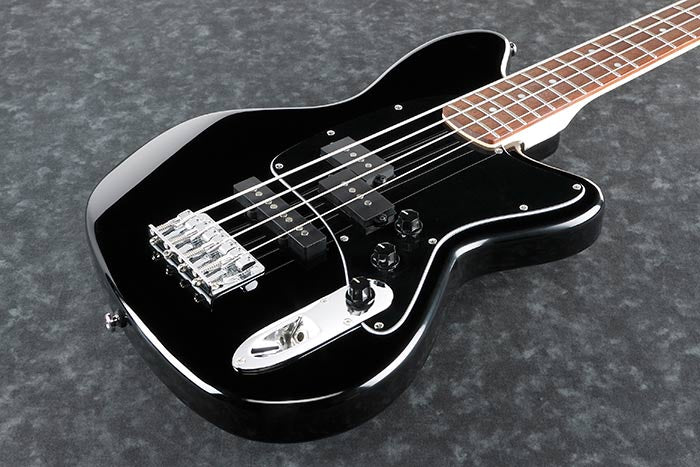

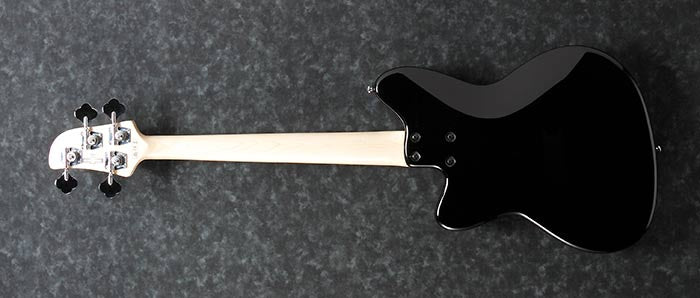

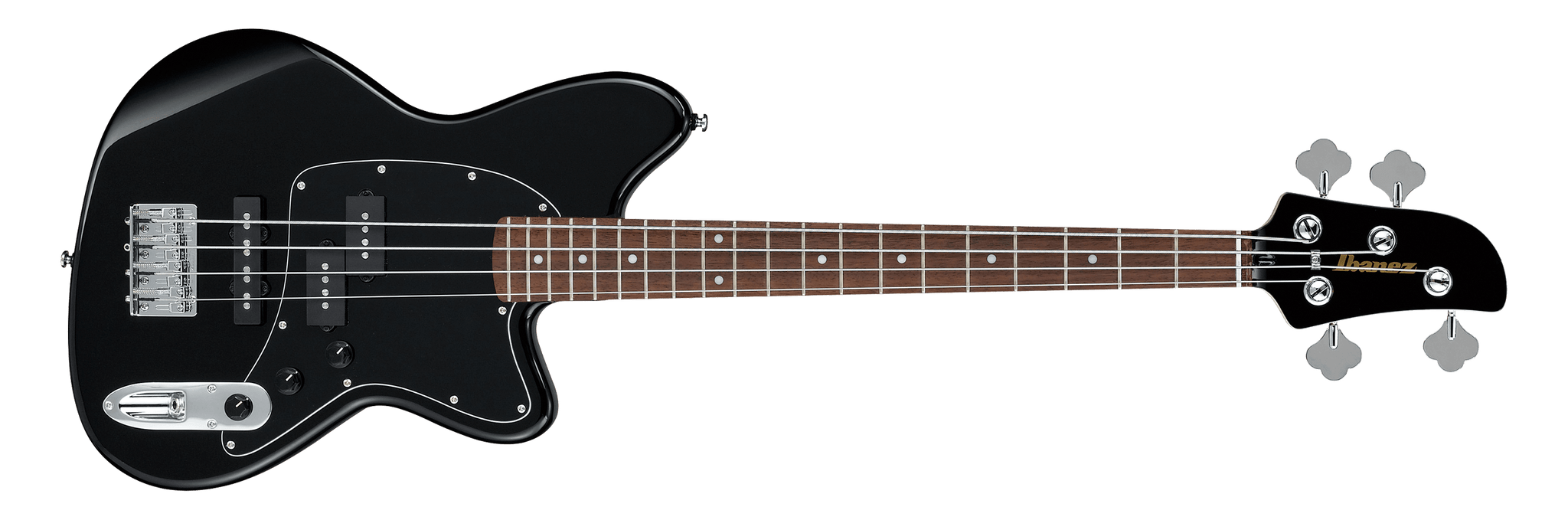

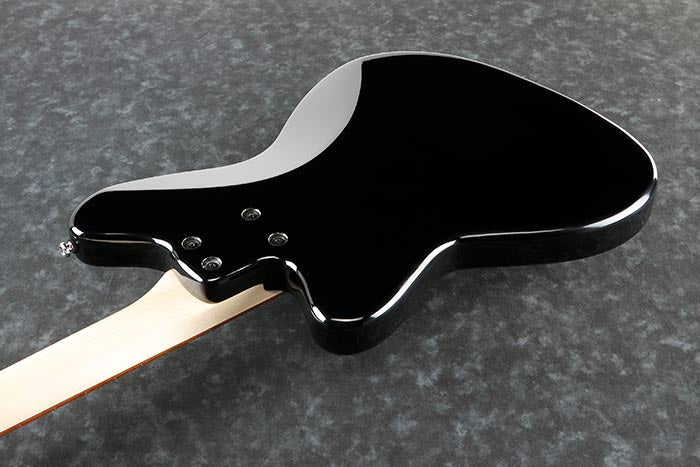

Ibanez TMB30-BK
-
SPECS
-
Neck Type: TMB4 Maple neck
-
Top/Back/Body: Poplar body
-
Fretboard: Jatoba fretboard White dot inlay
-
Fret: Medium frets
-
Number of Frets: 20
-
Bridge: B10 bridge
-
String Space: 19mm
-
Neck Pickup: Dynamix P neck pickup (Passive)
-
Bridge Pickup: Dynamix J bridge pickup (Passive)
-
Factory Tuning: 1G,2D,3A,4E
-
String Gauge: .045/.065/.085/.105
-
Hardware Colour: Chrome
-
-
NECK DIMENSIONS
-
-
Scale: 762mm/30"
-
a : Width: 41mm at NUT
-
b : Width: 62mm at 20F
-
c : Thickness: 21.5mm at 1F
-
d : Thickness: 24.5mm at 12F
-
Radius: 240mmR
-
-
-
-
CONTROLS
