Chord 171.016

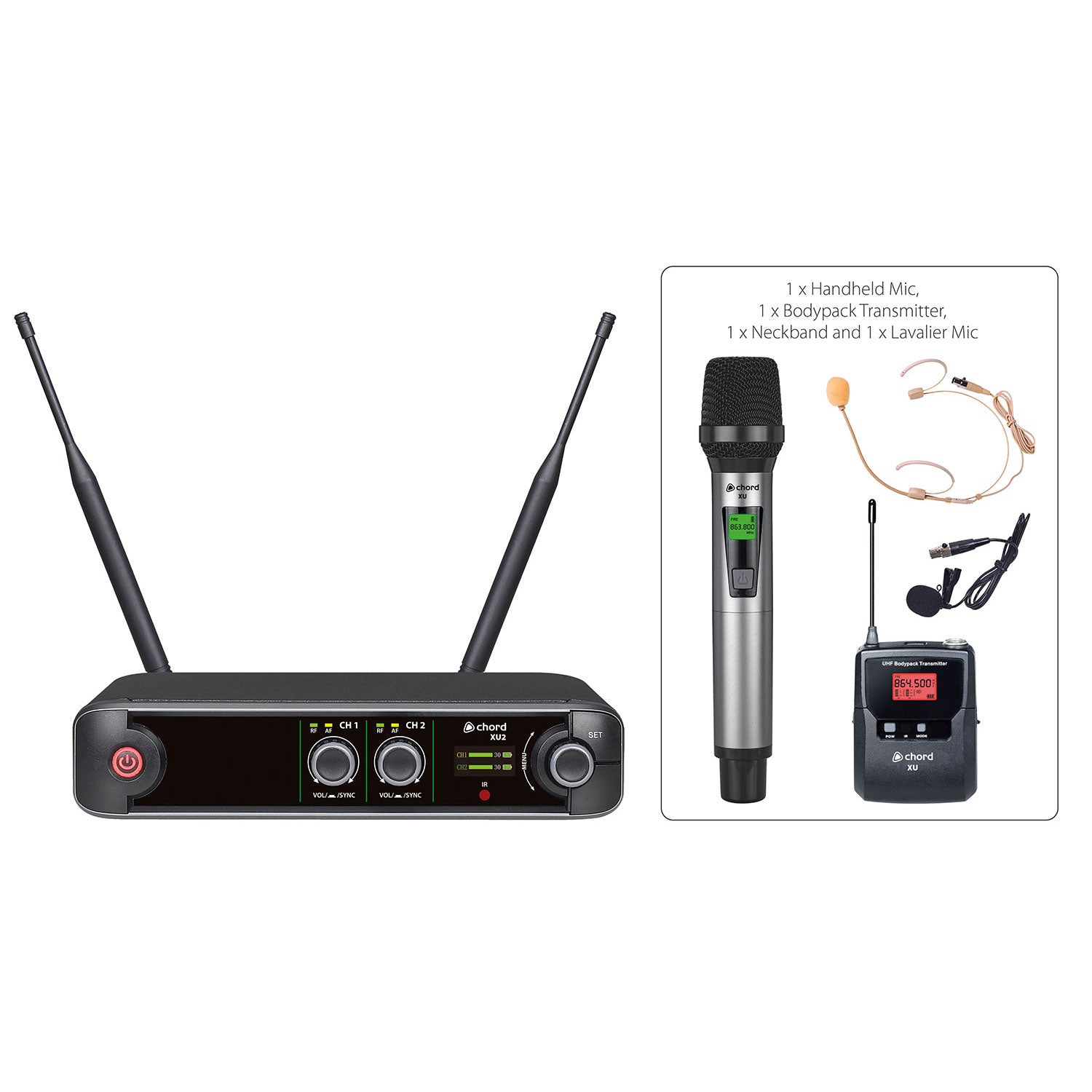

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 1, 2 or 4 channels of either handheld microphones or bodypack transmitters with a neckband and lavalier mic option. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.
- Compact half-width rack receiver
- True diversity antennas with internal distro for reliable reception
- 10 groups of 9 selectable UHF carrier frequencies
- Selectable backlight colours for each channel
- 1, 2 or 4 x XLR outputs + 1 x 6.3mm mix output
- Settings sync I.R. from receiver to transmitters
- Colour TFT display for settings menu

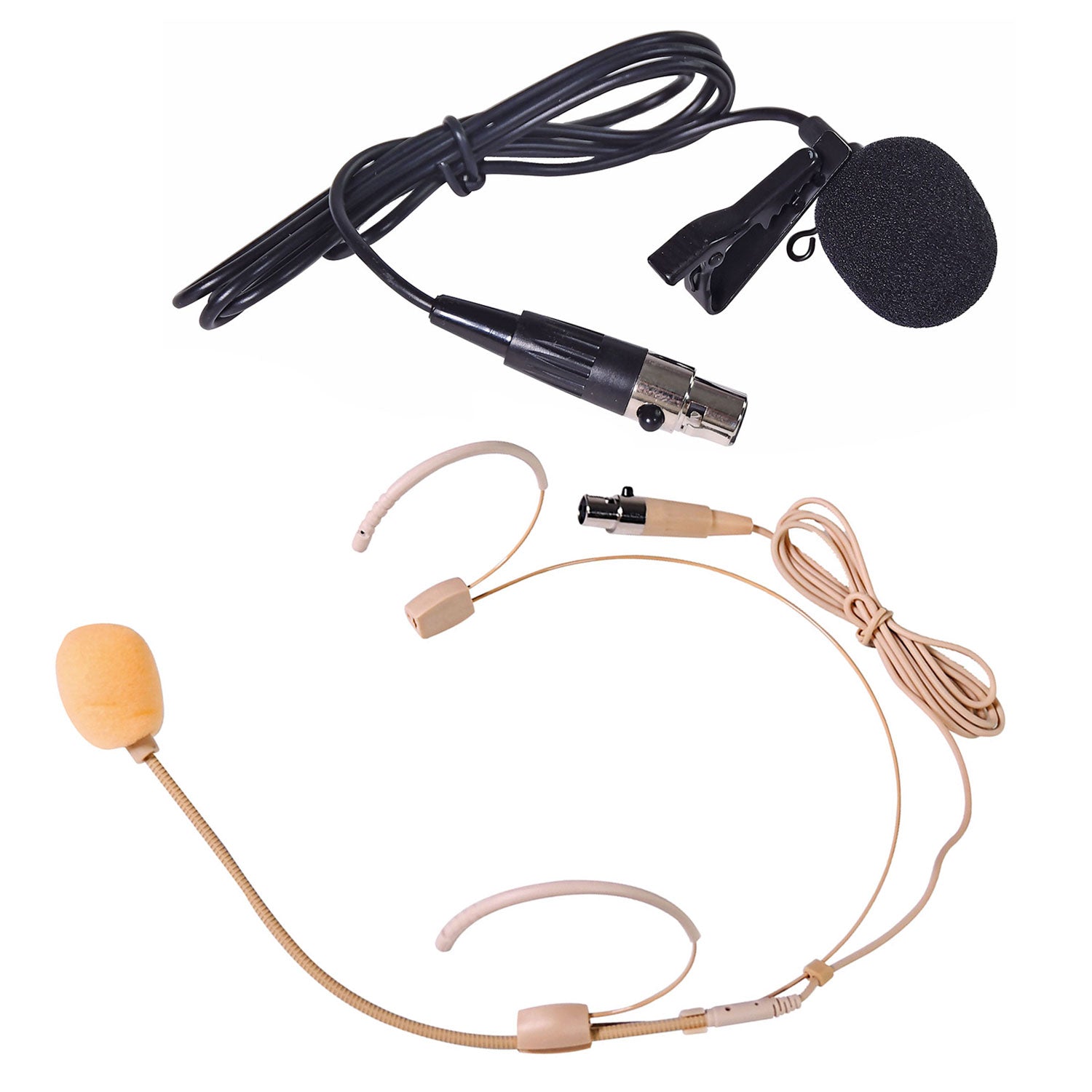

- Weight lavalier microphone: 23g
- Dimensions lavalier microphone: 27 x 12mmØ
- Weight neckband microphone: 28g
- Dimensions neckband microphone: 180 x 140 x 60mm
- Weight beltpack transmitter: 74g (no battery)
- Dimensions beltpack transmitter: 90 x 60 x 25mm
- Weight handheld transmitter: 246g (no battery)
- Dimensions handheld transmitter: 258 x 47mmØ
- Power supply: 12-18Vdc, 500mA (mains adaptor supplied)
- Batteries: 2 x AA per transmitter
- Carrier frequencies: 823-832 / 863-865MHz
- Wireless range: Up to 60m
- Antenna connection: 2 x BNC
- Dimensions receiver: 205 x 205 x 44mm
- Weight receiver: 755g
